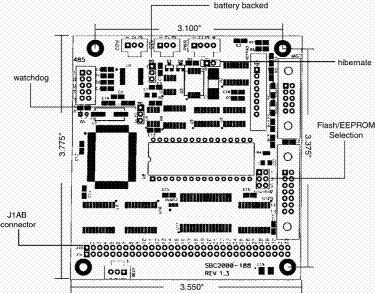

VESTA SBC2000-188
Intel 80C188EB based microcontroller


Specifications:

  • 16 bit x86 compatible microprocessor
  • Low power nap, sleep and hibernate modes
  • 32k, 128k or 512k x 8 no wait state BBSRAM
  • 128, 256, 2k or 16k byte EEPROM
  • Socketed 0.6" wide EPROM or Flash
  • 2 RS-232 serial ports
  • 128 byte to 16k byte EEPROM for parameter storage
  • Alphanumeric LCD port
  • 4 x 4 keypad port
  • Real Time Clock with RAM
  • Watchdog timer
  • Power Supply monitor
  • Low power modes
  • VAST Network Expansion port
  • Bus Expansion
  • Two PWM generators



Description:

The SBC2000-188 is a medium performance 16 bit, 'x86 compatible engine. Low power applications are possible with normal operation requiring 115 mA, nap mode 50 mA and sleep mode 152 mA. Additionally, the SBC2000-188 can turn itself completely off reducing supply current to zero and reactivate itself at a programmed time. The byte-wide boot ROM device is a standard 27xxx type for easy development. This device may be replaced with a Flash device for on-site reprogrammability.
