Specifications:
- High performance, 32 bit microprocessor
- Integrated Time Processing Unit (TPU)
- Socketed, 0.6" wide EPROM
- 64k , 128k or 512k x 16 flash, 100,000 write cycles
- 64k , 128k or 512k x 16 no wait state BBSRAM
- 128k to 16k byte EEPROM, 1,000,000 write cycles
- Alphanumeric LCD / 4x4 Keypad port
- Battery backable Real Time Clock
- Background Debugger Mode (BDM) port
- Two RS-232 serial ports
- Dual Watchdog Timers
- Power Supply monitor
- 9 channels of TPU Input / Output
- Scalable system clock, low power modes
- VAST Network Expansion port
- BUS Expansion port
Description:

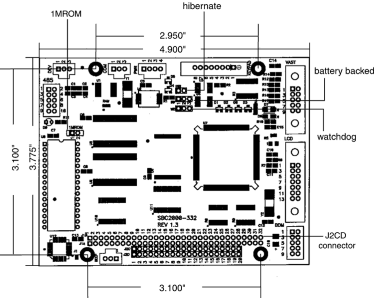

The SBC2000-332 is a high performance, low power single board
computer. Initial program execution begins in 8 bit wide boot ROM.
Execution can be transferred to 16 bit wide flash memory for faster
execution or 16 bit wide no wait state battery backable RAM for
maximum performance.
|
